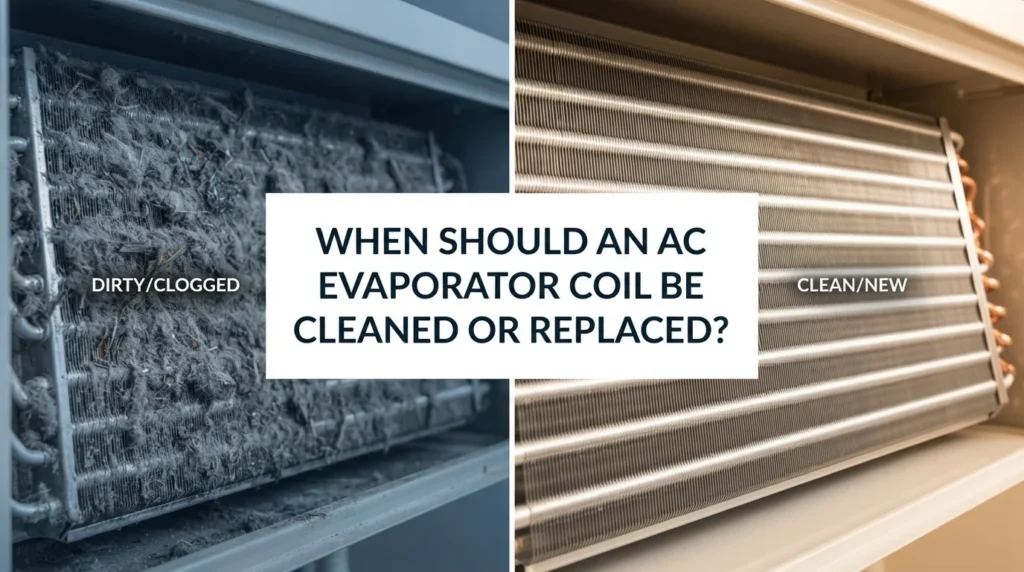

When Should an AC Evaporator Coil Be Cleaned or Replaced?

Running an indoor cooling system non stop through long stretches of high heat puts a lot of pressure on the components working inside the unit. If you’ve seen weak airflow, uneven cooling between rooms, or supply air that feels warmer than it should, the problem often points to a dirty ac evaporator coil that’s clogged with dust or leaking internally. This guide describes the diagnostic signs, the cleaning process and the clear signals that let you know when replacement is the only option left.

Understanding the Role of the AC Evaporator Coil in System Cooling

The evaporator coil is the part of your air conditioning system that actually removes heat and moisture from the air inside your home. The refrigerant passes through the coil at low pressure, low temperature, and absorbs the heat as warm indoor air passes over it, changing from liquid to gas. This is the core of the cooling cycle, not the outdoor condenser everyone thinks does all the work.

The coil cools the air and also draws the moisture out of the air. This dehumidifying function is equally important as the temperature drop, in a place like Dubai where the humidity levels are high for most of the year. If your air conditioner evaporator coil is working properly, your home will feel cooler and obviously dry.

Locating the AC Evaporator Coil Inside Split and Packaged Units

The ac evaporator coil location depends on the type of system you have installed. In split units, the coil is inside the indoor air handler, usually inside a metal cabinet attached to the ductwork. In packaged systems it is mounted directly above the furnace or blower cabinet, frequently in a single outdoor cabinet.

Generally, the coils on the split system are easier to inspect since the indoor unit is closer to the living spaces. Packaged unit coils are outside and combined with other components so a technician generally has to open the housing safely to get a good look.

Clear Signs Your Air Conditioner Evaporator Coil Needs Professional Cleaning

A dirty coil doesn’t suddenly fail. It gradually reveals itself through a handful of symptoms that get worse the longer they are ignored.

• Normal fan operation but airflow from vents feels weaker than normal
• The AC vents emit a musty or stale smell when the AC is turned on
• Your energy bills are higher even if you haven’t changed your usage habits
• Some rooms cool down well and others remain warm
• The system operates longer cycles to reach the same set temperature

The techs call this a static pressure drop due to the dust buildup on the coil face. As dirt builds up on the coil in layers, the fan must work harder to force air through it, which strains the blower motor and reduces the amount of heat that the coil can actually absorb. This is one of the most common causes of efficiency loss of a central ac evaporator coil over time and is completely avoided with regular cleaning.

How Mold, Biofilm, and Dirt Restrict Airflow Across Aluminum Fins

Thin aluminum fins are packed close together inside the coil. Aluminum transfers heat very well, but the fins can get clogged easily. Moisture, along with dust particles, creates a sticky film on these fins that over time develops into biofilm, a layer of mold, bacteria and organic residue.

Biofilm does two things at once. It physically blocks the air flow between the fins and insulates the coil surface, which further slows down the heat transfer. There’s also an air quality aspect to this. The mold spores that gather on the coil can travel through your duct work and into the rooms you breathe in, which is both a health issue and a cooling performance issue.

Critical Symptoms That Indicate Full AC Evaporator Coil Replacement

Cleaning will solve most coil problems, but eventually the coil will be so damaged it cannot be serviced. Look for these signs of ac evaporator coil replacement rather than another cleaning cycle.

• Refrigerant keeps dropping even after several recharges
• Evidence of corrosion or physical damage to the coil tubing or fins
• Have you seen ice on the coil, even shortly after a professional cleaning
• After a full chemical wash the system still doesn’t cool properly

If any of these still happen after maintenance, the coil has probably reached a point where cleaning cannot restore it to function. If you keep patching a coil in this condition it will usually cost you more in the long run than just replacing it.

Identifying Pinhole Leaks and Chemical Formication Corrosion

Formication corrosion is a specific kind of damage that occurs when household chemicals, such as cleaning agents or aerosols, combine with moisture on the coil’s copper tubing. This chemical reaction eats tiny pits into the copper over months and years. These pits become pinholes.

These pinholes are very hard to spot with the naked eye, because they are microscopic in nature. An AC evaporator coil leak caused by formication usually shows up through indirect signs, similar to other AC refrigerant leak problems:

• A low hissing sound around the indoor unit
• An oily film on or around the surface of the coil
• Refrigerant levels are decreasing and no apparent leak outside

When a leak is confirmed, professional AC repair is needed to determine whether the coil can be repaired or needs replacement.

Step-by-Step Guide to Professional Central AC Evaporator Coil Cleaning

There are certain steps to follow to clean a coil properly and missing any of these steps either damages the coil or leaves it only partially clean.

Step 1: System shutdown and safety isolation. Before any panel is opened, the unit is fully disconnected from the electrical supply.

Step 2: Coil access. The access panel is carefully taken off to reveal the coil without bending surrounding ductwork or fins.

Step 3: Cleaning method selection. Light dirt on the coil can usually be cleaned with a spray foam that doesn’t need rinsing. If there is more dirt, like slimy stuff or years of dirt, the coil needs to be cleaned more thoroughly by flushing it with water and using special cleaning chemicals outside the unit.

Step 4: Fin straightening and drain flushing. If any of the aluminum fins are bent, they are straightened using a fin comb. The drain pan underneath is flushed to remove any sediment or blockage.

Step 5: Restart and performance check. The system is then reassembled and restarted. It is checked for the strength of the airflow and the difference in temperature between the air coming in and out of the vents.

Central ac evaporator coil cleaning done this way restores most of the coil’s original efficiency, assuming the coil itself has not suffered physical damage.

Comparing Cleaning Costs vs AC Evaporator Coil Replacement Cost

Cleaning costs can vary based on a few factors, but are generally well below the cost of a full replacement. There are a number of factors that affect replacement pricing:

• Coil rating in terms of tonnage or capacity
• Compatibility with your current unit of the new coil
• Requirements for refrigerant recovery and recharge
• Labor rates and access to the unit by the technician

Usually, a coil that just needs to be cleaned will cost a fraction of what a replacement will be, which is why catching problems early with regular maintenance will save you money over the life of the system.

Impact of Dubai Ambient Heat and Dust Loads on Coil Maintenance

Cooling systems are expected to run for long hours almost every day during the Dubai summer temperatures which means that the continuous work increases the wear and tear on every component including the coil. And when the surrounding air is hotter, the system is under more pressure, and so is the coil tubing that’s already being run at its limits.

Another layer to the problem is the dust storms. Fine sand particles here settle into the fins more quickly than they would in a less extreme climate which means that coils plug up on a shorter timeline than they would in a system that operates in cooler and less dusty environments. AC Maintenance UAE technicians often observe that homes that run their AC 24/7 in the summer months need coil checks more than once a year as the general guideline states.

Preventive Maintenance Schedules to Extend Coil Operational Life

A simple AC maintenance routine can prevent early coil failure and help identify coil problems before they require costly repairs.

• Wash the coil at least once a year and twice annually if the system has heavy dust exposure or daily use
• Change the air filter regularly, as a dirty filter will increase the rate at which dirt is deposited on the coil itself
• Check before the height of the summer season when the system will be at its peak load

This type of schedule allows the coil to operate within the initial efficiency for most of its expected life.

When Should You Call a Technician for Immediate Inspection?

Some symptoms are not to be put off until a scheduled maintenance visit. Call a technician right away if you see any of the following:

• Ice visible on the coil or refrigerant lines
• Water collecting around the indoor unit
• A burning odor coming from the unit or the vents
• Complete cooling failure under system operational conditions

These are signs of an active problem that may get worse quickly, and waiting on them often turns a small repair into a much larger one.

Key Takeaways

Dirty or leaking ac evaporator coil cause airflow restrictions, higher energy bills and eventual strain on the compressor. Minor decreases in efficiency if not controlled can lead to a total failure of the system. Regular chemical cleaning takes care of most of these problems before they become serious and the coil will operate for years almost as well as new.

As for permanent leaks, that’s another story. Once you start to see formication corrosion or physical damage, there is no cleaning it up, and replacement is the only real fix. Routine checks are the easiest way to stay ahead of the problem and protect your system, especially given how quickly dust and heat buildup in Dubai’s climate, to avoid a costly breakdown during peak summer months.

FAQs

Q: What is an ac evaporator coil and what does it do?

The indoor unit removes heat and humidity from the air by circulating refrigerant. The warm air passes over the coil, and the refrigerant inside changes from liquid to gas, pulling heat out and cooling the air returning to your rooms.

Q: Where is the ac evaporator coil location in a central AC unit?

For split systems, it is inside the indoor air handler cabinet. It is mounted directly above the furnace or blower cabinet in packaged units and is usually housed along with other components in one outdoor enclosure.

Q: How often should central ac evaporator coil cleaning be performed in Dubai?

Most homes do ok once a year at a minimum. Doing it twice a year will better protect against buildup and loss of efficiency in heavy dust conditions or with daily use all summer long.

Q: What causes an ac evaporator coil leak over time?

Formication corrosion, caused by household chemicals reacting with moisture on old copper pipework, is a common cause. This slowly eats pinholes into the coil and causes gradual refrigerant loss.

Q: Can a dirty air conditioner evaporator coil cause the system to freeze up?

Yes. If dirt forms on the coil, it may block airflow so that the coil doesn’t heat up enough to prevent the formation of ice on the surface of the coil which can extend across the coil.

Q: What are the signs that I need an ac evaporator coil replacement?

If the refrigerant keeps leaking after a recharge, the fins or tubing are badly damaged, ice keeps coming back after you clean it, or the system still won’t cool properly after a chemical wash, it’s time to replace the unit.

Q: How much does an ac evaporator coil replacement cost on average?

Cost depends on the coil tonnage, your current unit, refrigerant recovery, labor and your local service rates. Technician estimates will give you the most accurate figure, since prices vary widely.

Q: Can you clean an evaporator coil without removing it from the cabinet?

In the case of light buildup, it can be treated with a no-rinse foam spray applied directly inside the cabinet. For heavier build up or bio film the coil needs to be pumped down and removed for a full bench chemical cleaning.

Q: Why does a bad evaporator coil cause water leakage around the indoor unit?

A clogged drain pan, a misaligned coil, or ice that melts faster than the condensate drain can handle can all cause water to pool around the indoor unit instead of draining out properly.

Q: How long does a central ac evaporator coil typically last?

Most coils last from 10 to 15 years. Coastal humidity and heavy exposure to dust (both of which are common in Dubai) is likely to reduce the lifetime if the coil is not regularly maintained.

Q: Is it better to replace just the evaporator coil or the entire condenser unit?

The age of the system, the compatibility of the refrigerant type (R-410A versus older gases), and how well a new coil would match the existing condenser are factors. A technician assessment will tell you which option makes more sense.
